10 Gigabit Quad optical ports SFP+ 10 Gigabit Ethernet OCP mezzanine card with Intel XL710BM1 chip
Add to Cart
My Collection
-
Smart Encryption Product
- 25G Mellanox chip network card
-
GRT Chip Ethernet Network Card
-
Smart Encryption Network Card
-
Ethernet Network Card
-
Ethernet Bypass Adapter
-
OCP Adapters
- FPGA Network Interface Card
-
Fiber Optic Transceivers
- Optical Fiber Patch Cord
- Fiber Media Converter
-
Unidirectional Network Card
- CWDM
- Optical Splitter
Product features
Supports jumbo frames up to 9.5KB
Support for Flow Control
Priority Flow Control (IEEE 802.1Qbb)
Enhanced Transport Selection (IEEE802.1az)
Statistical management and RMON
802.1q VLAN support
DCB/DCB-X support
Message Signal Interrupt (MSI-X)
Storage - Smart offload solution via native OS(including NAS, iSCSI and FCoE) for competitive performance
Supports hot plugging

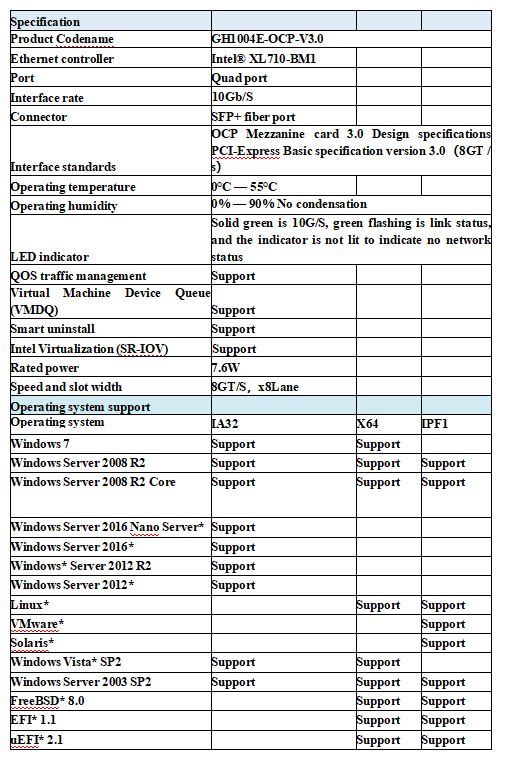

Key attributes
Model Number: GH1004E-OCP-V3.0
Brand Name: GRT
Warranty Time: 3 years
Certification: FCC, RoHS, CE
Data rate: 10GbE
Ethernet controller: Intel®XL710-BM1
Application: Servers, GAP, Firewall, storage device,etc.
Product description

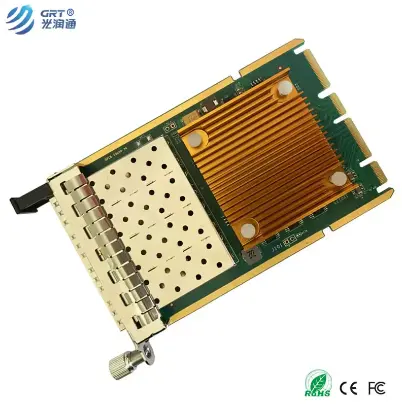

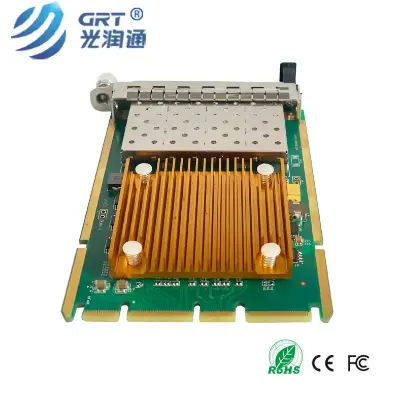

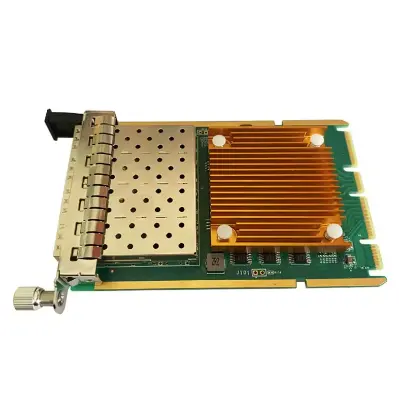

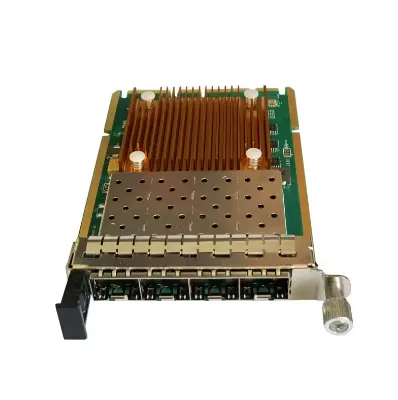

GH1004E-OCP-V3.0 SFP+10 Gigabit Ethernet OCP 3.0 mezzanine card is based on the Intel XL710BM1 Ethernet controller with fully integrated 10 Gigabit Ethernet media access control (MAC) and SFI interface. In addition to managing MAC and PHY Ethernet layer functions, the controller also manages PCI Express packet traffic at its transactional, link, and physical/logical layers. With hardware acceleration, the controller offloads tasks from the host, such as TCP/UDP/IP checksum calculation and TCP fragmentation.
Guangruntong SFP+ 10,000 Gigabit Ethernet OCP mezzanine card is an ideal solution for mission-critical high-performance network applications and environments that implement multiple network segments in high-performance OCP servers.
Host Interface:
Support for OCP Mezzanine Card 3.0 Design Specification
PCI Express Gen 3.0 x8 lanes
SFP+ 10,000 Gigabit Ethernet adapter.
•SRD: Fiber 1/10 Gigabit Ethernet 1000Base-SX/10GBASE-SR:
1000BASE-SX with 1G 850nM Small Form Factor Pluggable (SFP+)
10GBASE-SR with 10Gigabit 850nM Small Form Factor Pluggable (SFP+)
•LRD: Fiber 1/10 Gigabit Ethernet 1000Base-LX / 10GBASE-LR:
1000BASE-LX with 1G 1310nM Small Form Factor Pluggable (SFP+)
10GBASE-LR with 10Gigabit 1310nM Small Form Factor Pluggable (SFP+)
LAN and virtualization Function:
• VXLAN and NVGRE network virtualization offload
• Unified network provides single-wire for LAN and storage: NAS (SMB, NFS) and SAN (iSCSI, FCoE)
• Virtual bridging support - VEPA / 802.1Qbg，BPE / 802.1Qbh
• Virtualization supports 32 virtual ports per port
• Virtualization - Alleviates hypervisor I/O bottlenecks by providing stream separation for virtual machines (VM).
Compatibility
All of GRT's products are open sourced, fully compatible with major brands' products and devices, such as Intel, Dell, Cisco, Finisar, Arista, HP, Mellanox, Juniper, HUAWEI, H3C, etc.
For other brands' devices, please specify when ordering so that we can write corresponding codes for your easy application.
Packing & Shipping
Packed in blister box and paper box, 1piece/box. Normal orders to be shipped within 2 working days upon receipt of payment.
We can ship by TNT, FedEx, EMS, UPS, DHL, or other named forwarders as per your request.
